Kodak - Ektra 200 camera
PREVIOUS | NEXT |
My
first camera - Dec 1983 to Dec 1986

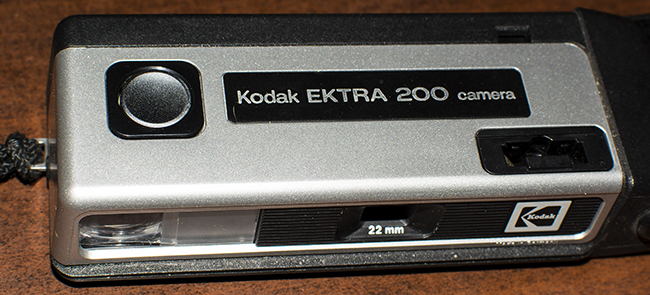

Kodak Ektra 200 are made in Germany from
1980 and its body all plastic, batteries not required. It
has flip flash port and a Kodar 22mm lens. There is no
focusing, aperture settings or shutter speed
dials, a pure point and shoot camera.

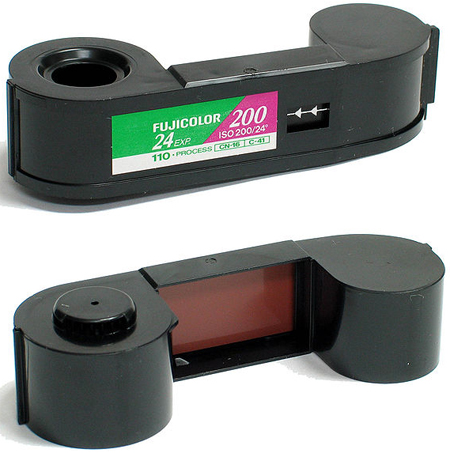

110 is a cartridge-based film format used in still photography. It was introduced by Kodak in 1972. 110 is essentially a miniaturised version of Kodak's earlier 126 film format. Each frame is 13 × 17 mm (0.51 × 0.67 in), with one registration hole.
The film is fully housed in a plastic cartridge, which also
registers the image when the film is advanced. There is a
continuous backing paper, and the frame number and film type are
visible through a window at the rear of the cartridge. The film
does not need to be rewound and is very simple to load and unload.
It is pre-exposed with frame lines and numbers, a feature
intended to make it easier and more efficient for photofinishers
to print. Wind the film until you stop seeing X and when you start
seeing number 1 on the frame counter you are ready to take photos.

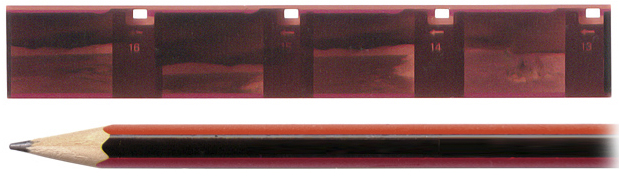

Unlike later competing formats, such as disc and APS film,
processed 110 negatives were returned in strips, without the
original cartridge.
Flipflash featured an array of 8 or 10 bulbs in a flat rectangular
arrangement, each bulb placed horizontally, one above the other.
Fuses selected the next bulb to fire; when half the bulbs were
used, the photographer had to invert the Flipflash - which had a
connector on both ends - to use the remainder (hence the name).
The camera had a small rectangular socket to mount the Flipflash.
Year of introduction : 1980 to 1987
Body type | |||
Body type | Miniature |
||
Sensor | |||
Max resolution | Analogue | ||
Other resolutions | - | ||
Image ratio w:h | - | ||
Effective pixels | - | ||
Sensor photo detectors | - | ||
Type of Film | 110 cassette Color Negative Film | ||
Negative Size | 13 x 17mm | ||
Image | |||
ISO | Film Dependent | ||
White balance presets | No | ||
Custom white balance | No | ||
Image stabilization | No | ||
Uncompressed format | - | ||
JPEG quality levels | - | ||
Optics & Focus | |||
Focal length (equiv.) | Kodar Fixed focus 22 mm f/11 | ||
Optical zoom | No | ||
Autofocus | Fixed Focus |
|
|
Digital zoom | No | ||
Manual focus | No | ||
Normal focus range | - | ||
Macro focus range | - | ||
Screen / viewfinder | |||
Screen size | Winder Window | ||
Screen dots | No | ||
Touch screen | No | ||
Live view | No | ||
Viewfinder type | Optical (tunnel) | ||
Photography features | |||
Maximum aperture | f/11 only |
||
Shutter speed | 3-speed 1/40 (flash only), 1/125, 1/250 Shutter speed is set by film cartride |
||
Aperture priority | No | ||
Shutter priority | No | ||
Built-in flash | No | ||
External flash | FlipFlash bulb strip | ||
Flash modes | - | ||
Continuous drive | Manual Wind | ||
Self-timer | No | ||
Exposure compensation | No | ||
Videography features | |||
Resolutions | No | ||
Storage | |||
Storage types | 110 Film Cassette | ||
Storage included | - | ||
Connectivity | |||
USB | No | ||
HDMI | No | ||
Remote control | No | ||
Physical | |||
Environmentally sealed | No | ||
Battery | No | ||
Battery description | - | ||
Weight |
120g |
||
Dimensions | 12.8 x 5 x 3cm | ||
Other features | |||
Orientation sensor | No | ||
Timelapse recording | No |
